Product | Otoscope Device System

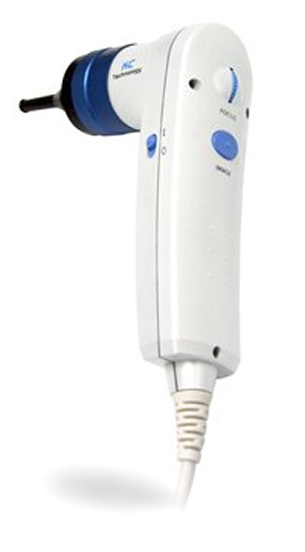

Otoscope System
OS-U: General model to be directly connected to a computer by using 1/3.2’’ Color 2Megapixel CMOS camera sensor
| Otoscope System | |
|---|---|
| Model | OS-U-30-H |
| Sensor | 2Mega CMOS Image Sensor [2M] |
| Effective Pixel | 1920 x 1080 pixel 30~60fps / 640 x 480 pixel 30~60fps |
| Image Output | USB 2.0 (1920 x 1080) / USB 1.1 (640 x 480) |
| Lens Magnification | X30 |
| White Balance | Auto White Balance(AWB) |
| Temperature | 14°F~122°F (-10°C ~ 50°C) |
| Humidity | Within 90% RH |
| Power | USB Port, DC 5.1V(±10%), 500mA Max |
| Package | 1 Video-microscope OS-U, 1 Lens OS-30x & 3 kinds of TIPS, 1 Holder, 1 S/W CD, 1 USER GUIDE |
| Weight | about 1.2KG |
| Dimensions | 300mm x 210mm x 90mm |

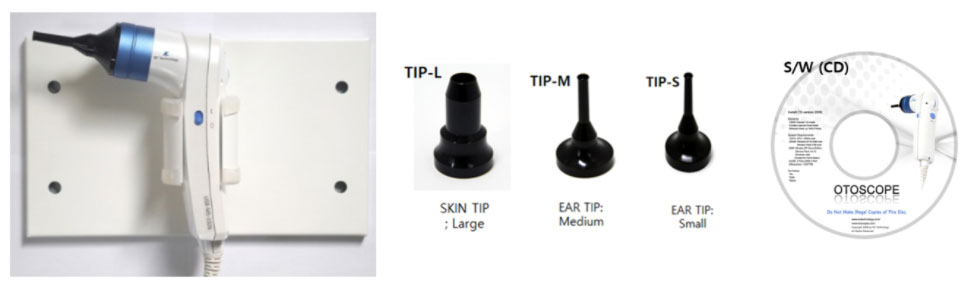

KC OS-U-30-H PACKAGE

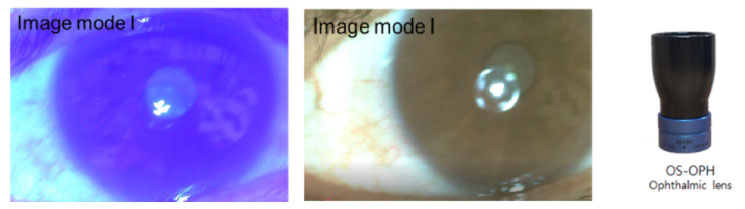

Model: OS-OPH
For testing eye, Iris at different each image mode by converting the IMAGE button on the otoscope OS-U.
